FOX Racing Shocks Ultimate Buyer's Guide
When it comes to upgrading your UTV's suspension, FOX Racing shocks stand as the gold standard in off-road performance. Whether you're conquering rock gardens, flying through desert whoops, or navigating technical trails, FOX Racing has engineered shock solutions that transform your ride from bone-jarring to confidence-inspiring. This comprehensive guide will help you understand FOX shock technology, choose the right setup for your riding style, and maximize your investment in these premium suspension components.
Why FOX Racing Shocks Dominate the UTV Market
FOX Racing Shox has been at the forefront of suspension innovation since 1974, bringing Formula 1 and motocross technology to the UTV world. Their commitment to performance has made them the OEM choice for premium models from Polaris, Can-Am, and other leading manufacturers. But what sets FOX apart isn't just their racing pedigree—it's their relentless pursuit of ride quality through advanced damping technology.
The secret lies in FOX's proprietary valve designs and precision manufacturing. Unlike budget shocks that use simple orifice damping, FOX employs sophisticated piston designs that provide position-sensitive damping. This means your shocks automatically adjust their behavior based on shaft speed and position, delivering plush small-bump compliance while maintaining control during aggressive hits.
Understanding FOX Shock Technology
Internal Bypass Technology
FOX's Internal Bypass (IBP) technology represents a quantum leap in shock performance. Traditional shocks maintain consistent damping throughout their stroke, but IBP shocks feature position-sensitive damping zones. As the shock compresses, oil flows through different bypass ports, allowing engineers to tune specific areas of the stroke independently. This results in a compliant initial stroke for small bumps, controlled mid-stroke for stability, and progressive bottom-out resistance for big hits.
Quick Switch 3 (QS3) Compression Adjustment
The QS3 system puts suspension tuning at your fingertips with three distinct compression settings. Whether you're crawling over rocks (soft), cruising fire roads (medium), or attacking whoops at speed (firm), a simple turn of the adjuster transforms your ride characteristics. This tool-free adjustment makes it easy to adapt to changing terrain without stopping to rebuild your shocks.
|
FOX Racing Honda Pioneer 700 Performance Series 1.5 Coil-Over QS3 Shocks (Kit of 4)Transform your Pioneer 700 with FOX's QS3 technology for instant compression adjustment. Perfect for riders who tackle varied terrain and need adaptable suspension performance.
|
Remote Reservoir Design
Heat is the enemy of consistent shock performance. FOX's remote reservoir design separates the nitrogen charge from the main shock body, dramatically increasing oil capacity and cooling efficiency. The reservoir's floating piston separates oil from nitrogen, preventing cavitation while maintaining consistent damping even during extended high-speed runs. For serious riders pushing their machines hard, remote reservoirs are essential for fade-free performance.
FOX Shock Series Breakdown
Performance Series
FOX Performance Series shocks deliver race-proven technology at an accessible price point. These aluminum-bodied shocks feature the same precision valving as their elite counterparts but in a more budget-friendly package. Available in both smooth body and reservoir configurations, Performance Series shocks are perfect for riders upgrading from stock suspension who want genuine FOX quality without the premium price tag.
Podium Series
The Podium Series represents FOX's no-compromise approach to UTV suspension. These shocks feature larger shaft diameters, increased oil volumes, and race-spec valving straight from FOX's factory race program. With options including RC2 (dual-speed compression adjustment) and X2 (compression and rebound adjustment), Podium shocks give professional racers and serious enthusiasts the tools to fine-tune their suspension for any condition.
Factory Series
Factory Series shocks showcase FOX's most advanced technology, including Live Valve electronic suspension. These cutting-edge shocks use accelerometers and sophisticated algorithms to adjust damping in real-time, providing the perfect balance between comfort and control. While primarily found on premium OEM applications, Factory Series technology demonstrates FOX's commitment to pushing suspension boundaries.
Choosing the Right FOX Shocks for Your Riding Style
Trail Riding
Trail riders need versatile suspension that handles everything from smooth fire roads to technical rock sections. FOX Performance Series 2.0 shocks with QS3 adjusters offer the perfect solution, allowing quick adjustments between comfort and control. The three-position compression adjuster lets you dial in soft settings for cruising with the family or firm up for more spirited riding. Consider pairing your shocks with appropriate long travel kits for maximum articulation on challenging trails.
Desert Racing
High-speed desert running demands maximum cooling capacity and fade-resistant performance. FOX 2.5 or 3.0 Podium shocks with remote reservoirs and bypass technology excel in these conditions. The larger shaft diameter resists bending under extreme loads, while the increased oil volume maintains consistent damping through extended whoops sections. Desert racers should also consider upgrading their light bars for those pre-dawn race starts.
|
|
Shock Therapy Polaris RZR XP 1000 / XP4 1000 / XP Turbo / XP4 Turbo Fox RC2 ShocksProfessional-grade FOX RC2 shocks with dual-speed compression adjustment. Engineered by Shock Therapy specifically for aggressive RZR riders demanding maximum performance.
|
Rock Crawling
Technical rock crawling requires maximum articulation and precise control at low speeds. FOX 2.0 Performance Series shocks with soft spring rates and tuned low-speed compression provide the compliance needed to maintain tire contact over obstacles. The aluminum body construction resists damage from rock strikes, while the rebuildable design ensures long-term reliability. Rock crawlers should also invest in proper safety equipment for those extreme angles.
Dune Running
Dunes present unique challenges with their combination of high-speed jumps and soft landings. FOX 3.0 Podium shocks with Internal Bypass technology excel here, providing progressive damping that soaks up g-outs while maintaining control on jump faces. The position-sensitive damping prevents harsh bottom-out while keeping the suspension active in the soft sand. Pair your suspension upgrade with a turbo kit to conquer those steep dune faces.
FOX Shock Maintenance and Tuning
Spring Rate Selection
Proper spring rate selection is crucial for optimal FOX shock performance. Too soft, and you'll experience excessive body roll and bottom out easily. Too stiff, and you'll sacrifice small bump compliance and traction. FOX provides detailed spring rate calculators based on vehicle weight, accessories, and riding style. Remember that adding accessories like sound bars or coolers affects your spring requirements.
Rebuild Intervals
FOX recommends rebuilding shocks every 50-100 hours of use, depending on conditions. Desert racing in extreme heat requires more frequent service than casual trail riding. Signs that your shocks need attention include oil leakage, inconsistent damping, or unusual noises. FOX's modular design makes rebuilds straightforward for experienced technicians, though many riders prefer professional service to ensure proper nitrogen charging.
|
|

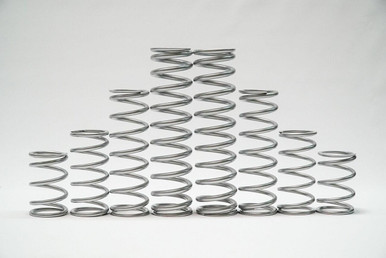

ZBroz Racing Can-Am Maverick X3 XDS 2.5 Fox Shocks Spring Kit (64" 2-Seat)Optimize your X3's FOX shocks with ZBroz's precisely calculated spring rates. Essential for maintaining proper ride height and maximizing suspension performance.
|
Nitrogen Pressure
Maintaining proper nitrogen pressure is essential for FOX shock performance. Low pressure results in cavitation and inconsistent damping, while excessive pressure creates harshness and reduces travel. Most FOX shocks require 150-200 PSI, though specific applications vary. Always use dry nitrogen—never compressed air—to prevent internal corrosion and maintain consistent performance.
Popular FOX Shock Upgrades by Vehicle
Polaris RZR Applications
The Polaris RZR XP 1000 and Pro XP benefit tremendously from FOX upgrades. The factory Walker Evans shocks, while adequate, lack the sophistication of FOX's position-sensitive damping. Popular upgrades include FOX 2.5 Podium shocks with QS3 adjusters for trail riders or 3.0 IBP shocks for desert racers. The Pro R already comes with FOX Live Valve, but aftermarket tuning can further enhance performance.
Can-Am Maverick X3 Solutions
The Can-Am Maverick X3 platform responds exceptionally well to FOX suspension upgrades. The X3's long-travel suspension geometry pairs perfectly with FOX's 3.0 shocks, providing the travel and control needed for high-speed desert running. Many X3 owners opt for FOX RC2 shocks with dual-speed compression adjustment to fine-tune their setup for specific terrain.
Utility UTV Applications
Don't overlook FOX upgrades for utility machines like the Polaris Ranger XP 1000. While these machines prioritize work over play, FOX shocks dramatically improve loaded handling and reduce driver fatigue during long days on the ranch. The QS3 system is particularly valuable for utility users who switch between unloaded and heavily loaded configurations.
FOX Shock Accessories and Enhancements
Maximizing your FOX shock investment often involves strategic accessories. Reservoir guards protect vulnerable components from rock damage, while limit straps prevent over-extension during aggressive driving. Proper mounting hardware ensures optimal shock angle and prevents binding through the suspension cycle.
|
Assault Industries Fox Shocks Reservoir Nitrogen Expansion CapsProtect your FOX shock investment with these precision-machined expansion caps. They provide additional nitrogen capacity for consistent performance in extreme conditions.
|
Crossover rings deserve special attention for their role in noise reduction and performance optimization. The progressive spring rate they provide smooths the transition between main and tender springs, eliminating the harsh "clunk" common with dual-rate setups. High-quality crossover rings also feature captured designs that prevent spring separation during full extension.
|
Shock Therapy Silent Cross Over Ring for Fox ShocksEliminate annoying spring noise and improve ride quality with these precision-engineered crossover rings. A must-have upgrade for any dual-rate FOX shock setup.
|
Preload adjustment represents another critical tuning element. Quality preload collars allow precise ride height adjustment without disassembly, essential for dialing in corner weights or compensating for accessory weight. Look for collars with positive locking mechanisms to prevent adjustment creep during aggressive riding.
|

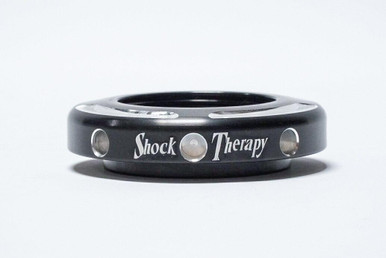

Shock Therapy Billet Fox Pre Load CollarPrecision-machined billet aluminum collar for exact preload adjustment. Features positive locking design to maintain settings during the most demanding rides.
|
Making the Investment: FOX Shock Buying Considerations
Investing in FOX Racing shocks represents a significant upgrade for any UTV, but understanding your needs ensures maximum value. Consider your primary riding terrain, vehicle modifications, and performance goals. A weekend trail rider might find FOX Performance Series 2.0 shocks perfect, while competitive racers need the adjustability of Podium RC2 or X2 models.
Budget considerations extend beyond initial purchase price. Factor in professional installation if you're not comfortable with suspension work, along with periodic rebuilds to maintain performance. However, FOX shocks' superior construction and rebuildable design make them more economical long-term than replacing cheaper shocks repeatedly.
Don't forget supporting modifications when upgrading to FOX shocks. Stronger mounting points, proper limit straps, and quality sway bar end links ensure your new shocks perform optimally. Many riders also upgrade their seats to better support their bodies during the increased speeds FOX shocks enable.
The Future of FOX Technology
FOX continues pushing suspension boundaries with technologies like Live Valve X2 and Smart Shock systems. These electronically controlled shocks use accelerometers and sophisticated algorithms to adjust damping in milliseconds, providing unprecedented ride quality. While currently limited to OEM applications, expect aftermarket availability as costs decrease and technology matures.
The integration of data logging and smartphone connectivity represents another frontier. Future FOX shocks may allow riders to analyze suspension performance, share settings with friends, and even download professional racer setups for specific tracks or events.
How often should I rebuild my FOX Racing shocks?
FOX recommends rebuilding your shocks every 50-100 hours of use, depending on riding conditions. Aggressive desert racing in high temperatures requires more frequent service (50 hours), while casual trail riding can extend intervals to 100 hours. Signs that indicate rebuild time include oil leakage around the shaft seal, inconsistent damping feel, unusual noises during compression, or visible shaft wear. Regular rebuilds maintain optimal performance and prevent costly internal damage.
What's the difference between FOX QS3 and RC2 adjustments?
QS3 (Quick Switch 3) provides three preset compression damping positions—soft, medium, and firm—via a simple lever adjustment that requires no tools. It's perfect for riders who want easy terrain adaptability. RC2 features dual-speed compression adjustment with independent high and low-speed circuits, allowing precise tuning for specific conditions. RC2 is ideal for racers and advanced riders who understand suspension dynamics and want maximum adjustability to fine-tune their setup.
Can I install FOX shocks myself or should I use a professional?
While mechanically inclined riders can install FOX shocks with basic tools, professional installation ensures proper setup and safety. Key considerations include proper torque specifications, correct shock angle to prevent binding, accurate spring preload adjustment, and proper nitrogen charging (requires special equipment). Professional installers also verify suspension geometry and can identify potential issues like worn bushings or bent mounting points that could affect performance.
Do FOX shocks work with lifted UTVs?
Yes, FOX offers extended-length shocks specifically designed for lifted applications. When selecting shocks for a lifted UTV, ensure the shock length matches your lift height to maintain proper suspension travel and prevent bottoming or topping out. Spring rates also need adjustment for lifted applications due to changed leverage ratios. Many lift kit manufacturers offer FOX shock packages specifically valved for their kits, ensuring optimal performance.
What causes FOX shocks to leak and can they be repaired?
Shock leaks typically result from worn shaft seals due to contamination, improper installation, or normal wear after extended use. Common causes include dirt/debris on the shaft, bent or scored shaft from impacts, improper nitrogen pressure, or worn internal seals. FOX shocks are fully rebuildable, and seal replacement is a routine maintenance item. Regular cleaning of exposed shafts and using shock boots in dusty conditions significantly extends seal life.
