DS18 Audio MRX150 Marine and Powersports Headunit 3" Color TFT screen
DS18’s MRX150 Marine and Powersports Head Unit is built for riders who want tough, reliable performance and powerful sound. With an IP65 waterproof rating and Gorilla Glass screen, it resists splashes, rain, scratches, and salt damage, making it the perfect controller for boats, UTVs, ATVs, and more.
Packed with features, the MRX150 gives you Bluetooth 5.0 streaming, AM/FM/Weather Band radio with 37 presets, and two audio zones with independent EQ and volume control. It delivers four channels at 25W RMS plus eight pre-amp outputs for amplifiers and subs, backed by a built-in voltmeter and protective silicone cover for peace of mind on every adventure.
Features
- AM/FM/WB Tuner + RDS
- 37 Radio Presets (18FM / 12AM / 7WB)
- Bluetooth v5.0 for superior audio streaming
- USB Port for Music & 2.1 Amp Charger
- Audio AUX Input
- Video Camera Input
- Wired Remote Control Input
- Screen with Gorilla Glass and OCA Full Bonding
- 2 Zones with Independent Level and Tone Control
- 2 Band EQ (Bass and Treble)
- Subwoofer Output Adjustable (Level and LPF)
- All Channels 4 Volts Pre-Amp RCA Output (all Zones)
- Speaker Output Power up to 25W x 4CH Continuously and up to 50W x 4CH Musical
Includes
- Main Unit
- (2) Threaded Stud with Nuts
- U Bracket

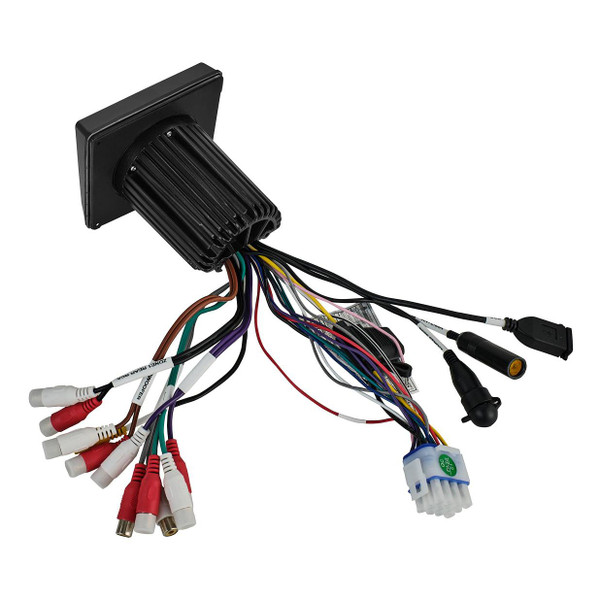

- Power/Speaker Harness
- (2) Hex Head Screws X
- Instruction Manual
Specifications
General
-
Operating Voltage: 10.5 – 16 V DC
-
Current Drain: 15 A (Max)
-
Low Voltage Warning: Yes (<10.8V)
-
Waterproof Rating: IP65 (Silicon Cover Included)
-
UV/Salt Protection: Yes
-
Control Buttons: Rubber with RGB Backlit (Blue)
-
Sold As: Single Unit
Display
-
Screen Panel: Gorilla Glass with OCA Full Bonding
-
Display Type: TFT LCD with IPS Technology
Audio Amplifier
-
RMS Power (4Ω): 4 x 18W
-
RMS Power (2Ω): 4 x 25W
-
MAX Power (2Ω): 4 x 50W
-
Minimum Load: 2 Ohm Stable per Channel
-
Frequency Response: 20Hz - 20kHz
-
RCA Pre-Out Voltage: 4V
-
Output Impedance: 500 ohm
-
Equalizer: 2-Band (Bass 100Hz ±10dB / Treble 10kHz ±10dB)
-
Audio Presets: Yes (S-Bass, Vocal, Powerful, Clarity)
-
Subwoofer Control: Level (-10 to +10)
-
Audio Zones: 2 Zones (Front/Rear & Zone 2)
-
Independent Zone Control: Yes (Level/Tone)
-
Audio Input: L+R RCA (Aux Input)
Tuner
-
FM Frequency Range: 87.5 – 107.9 MHz
-
AM Frequency Range: 162.40 – 162.55 MHz
-
NOAA Weather Band: Yes
-
Tuner Presets: 18 FM / 12 AM / 6 WB
-
Radio Data System (RDS): Yes (AF, TA, NEWS)
-
IF: 10.7MHz (FM), 450kHz (AM)
-
Sensitivity: 4µV (FM), 36dBuV (AM)
-
Signal-to-Noise Ratio: >30dB (FM)
-
Stereo Separation: >25dB
Connectivity & Media
-
Bluetooth Version: 5.0 + EDR
-
Audio Streaming: A2DP
-
USB Compatibility: 2.0
-
USB Max Capacity: 64 GB
-
USB Charge Current: 2.1 A
-
Audio File Support: MP3, WMA
-
Remote Control: Wired 3.5mm Jack Input (MXRC Compatible)
Physical Dimensions & Packaging
-
Product Weight: 2.3 lbs
-
Product Dimensions (L x W x H): 6.25" x 6" x 8"
-
Units per Master Carton: 8
-
Master Carton Weight: 19.5 lbs
-
Master Carton Dimensions (L x W x H): 13" x 13" x 17"
Fitment
- Marine Audio
- Powersports Audio
- Boats
- ATVS
- UTVS
- SXS
- GOLF CARTS
