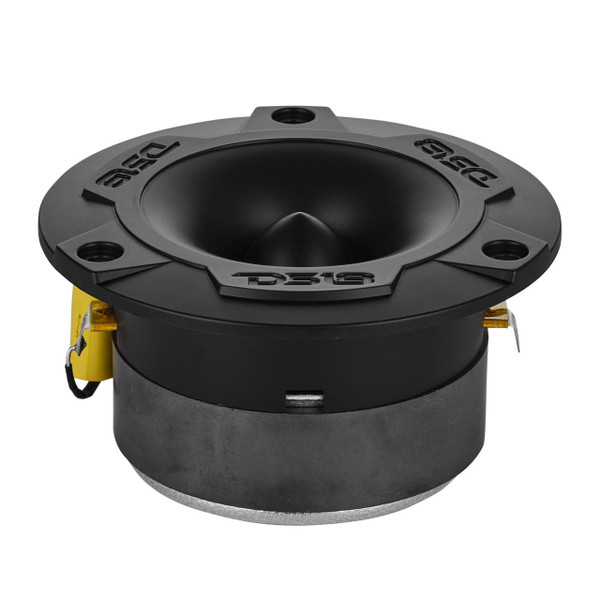

DS18 Audio NXL 3.8” Marine Water-Resistant Super Bullet Tweeter w/ 1” Aluminum Voice Coil
DS18’s NXL-T1 Marine Tweeter is built to withstand the toughest conditions while delivering powerful, high-frequency performance. With an IP36 waterproof rating and marine-grade construction, it resists UV rays, salt, and corrosion for long-lasting durability. Rated at 60W AES, 120W program, and 240W peak, this tweeter produces crisp, detailed highs across a 3.5kHz–20kHz range with a high 103dB sensitivity that cuts through any outdoor mix.
Designed for flexible installation, the NXL-T1 can be flush-mounted for a sleek, low-profile look or surface-mounted with the included enclosure for added protection and easier placement. Its compact size makes it a perfect fit for boats, 4x4s, motorcycles, and other powersports vehicles, and it’s available in both black and white finishes to match your setup. Upgrade your marine audio system with the NXL-T1 and enjoy crystal-clear sound wherever the adventure takes you.
Features
- 3.8" Marine Super Bullet Tweeter
- RMS Power: 120 Watts(240 Watts Peak)
- Impedance: 4 Ohm ~ 103dB
- Ferrite Magnet
- Water Resistant IP36
- Sold as Pair
Specifications
General
-
Total Watts (Peak): 240W
-
Total Watts (Program): 120W
-
Total Watts (AES): 60W
-
Nominal Diameter: 3.75" / 95.2mm
-
Nominal Impedance: 4 Ohms
-
Sensitivity (1w/1m): 103dB
-
Frequency Response: 3.5kHz - 20kHz
-
Recommended High Pass Crossover: 2kHz
-
Pair or Single: Pair
-
Marine Grade Type: IP36
-
UV / Salt Protection: Yes
-
Body Material / Color: ASA / White
Motor
-
Voice Coil Diameter: 1" / 25.4mm
-
Voice Coil Former Material: Kapton
-
Winding Material: CCAW
-
Diaphragm Material: Aluminum
-
Magnet Material: Ferrite
-
Magnet Weight: 8 oz

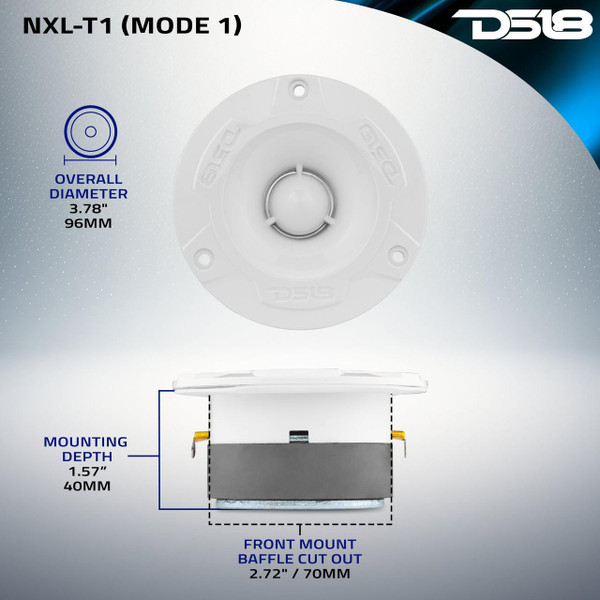

Measurement (Without Enclosure)
-
Overall Diameter: 3.78" / 96mm
-
Overall Depth: 1.78" / 45mm
-
Front Mount Baffle Cutout: 2.72" / 70mm
-
Mounting Depth: 1.57" / 40mm

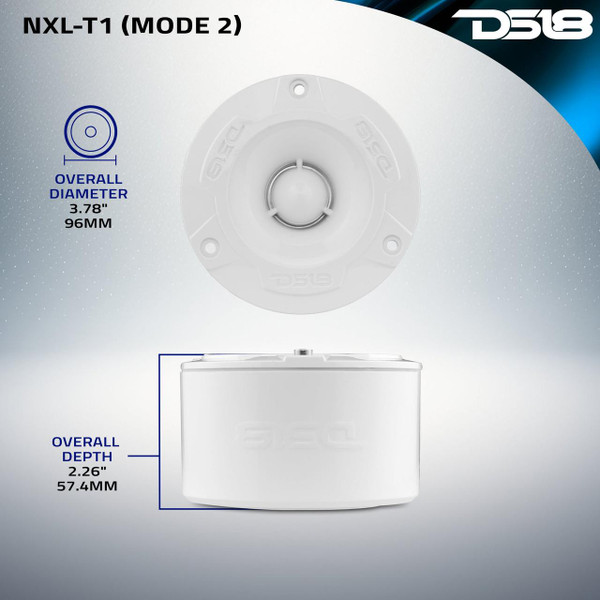

Measurements (With Enclosure)
-
Overall Diameter: 3.78" / 96mm
-
Overall Depth: 2.26" / 57.4mm
Fitment
- UTVs
- Jeeps
- Boats
- ATVs
- SXS
