Description
Heretic Studio 6inch LED Light Bar
The Heretic 6" LED light bar is built for off-road. These high performance LED light bars are designed and manufactured in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 6” LED light bar is recommended as a ditch light, chase light, fog light, bumper or rack light. It’s specifically optimized for clear night conditions.
FEATURES
- USA Patented 6061 CNC Aluminum Grade Billet Housing
- (6) 6-watt CREE LED
- Designed, Manufactured, Assembled, Supported, and Shipped in Centerville, Utah
- Customize Your Beam Pattern: Combo, Spot, or Flood
- Customize Your Bezel - Contact Heretic Studio
FEATURES
- Constructed from a Single Block of Aluminum
- Optimized Light Shape & Lumens
- Heat Management
- Made in the USA
- Versatile Mounting Options

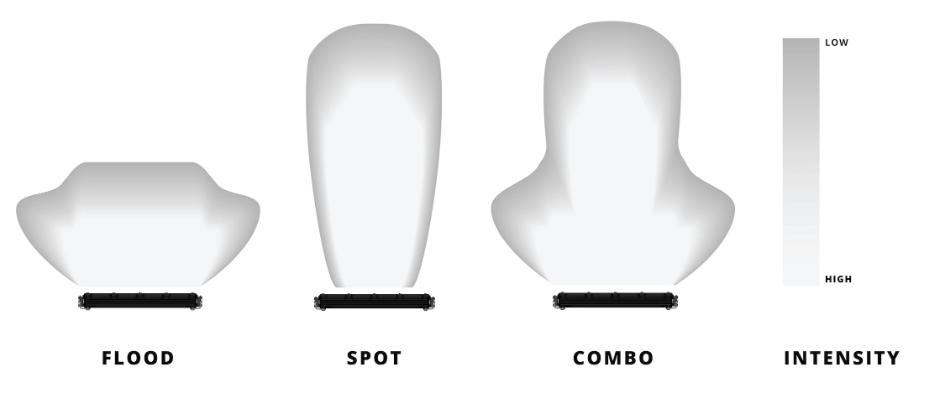

BEAM PATTERN
SPECIFICATIONS
- Shipping Weight: 3lbs
- Type: 6” LED Light Bar
- Housing: CNC Aircraft-Grade Aluminum
- Location: Ditch, Bumper, Chase, Fog, Rack Light
- Light Color: White
- Lens Color: Amber
- Wattage: 30W
- Amp Draw at 13.8V: 3A
- Voltage: 9V-36V
- IP Rating: IP68
- DIM (Light Only): L 7” x D 1.5” x H 2”
- DIM (Light W/ Bracket): L 8” x D 1.5” x H “2.4
- Lumens: 4356 lm
- Lux At 10m:
- Spot: 1238 lx
- Flood: 263 lx
- Combo: 588 lx
- Candela:
- Spot: 123750 cd
- Flood: 26325 cd
- Combo: 58800 cd
- Beam Distance:
- Spot: 704 m
- Flood: 324 m
- Combo: 485 m
- DOT Compliant: No
- Prop 65: No
- SAE/ECE: No
NOTES
Parts Sold Separate
- Wiring Harness
- Aftermarket Mount for Roof Rack Attachment
- Amber Lens Attachment - Link
