High Lifter Polaris Ranger XD 1500 NOMAD Headache Rack
The N.O.M.A.D™ Headache Rack from High Lifter® is built for adventure. This rack comes standard with a 1,500 lb. winch to help you load game or other heavy objects into the bed of your Ranger® 1500. Multiple color, lighting, and MOLLE panel options give you the flexibility to customize to meet your specific needs.
Standard Features

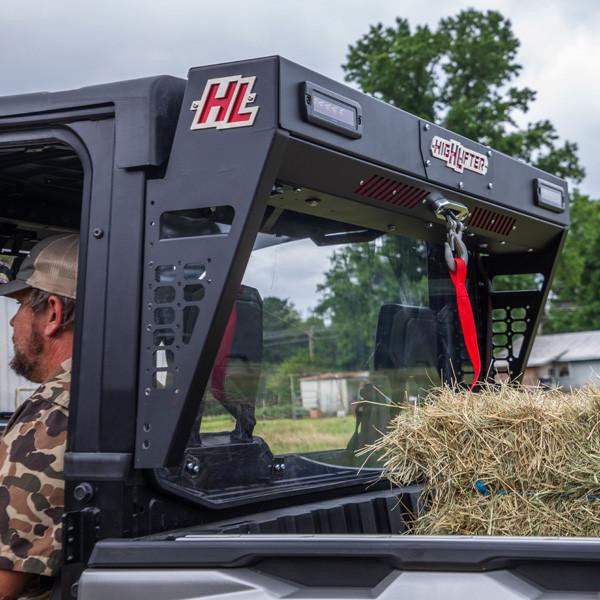

- Built-In Heavy-Duty Winch: Includes a 1,500 LB winch with both wireless and wired switch options, making it easy and convenient to load and haul heavy payloads.

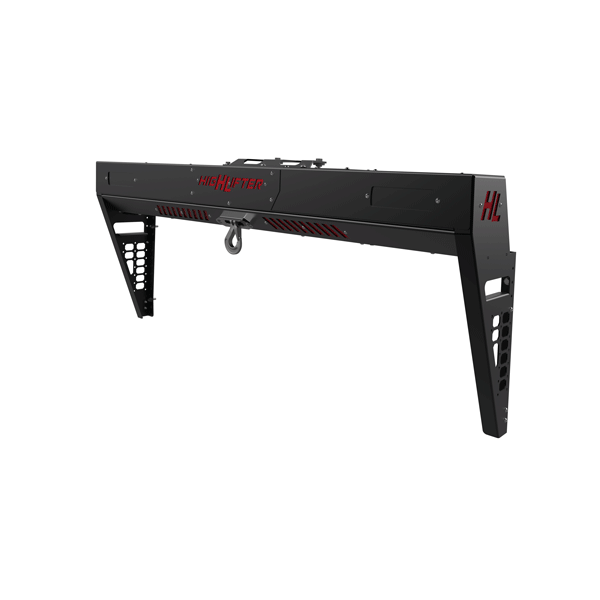

- Unmatched Durability: Crafted from precision CNC laser-cut American steel, this headache rack is built to endure extreme off-road conditions while providing top-tier protection for your vehicle and gear.
- Integrated Handles: Grab handles designed into the sides of the rack make accessing your bed easier.
- Premium Powder Coating: Finished in an Extreme Duty 4-stage powder coating process for a durable, long-lasting finish that resists wear and tear.
- Proudly crafted in the USA: Designed, engineered and assembled in at our facilities in Shreveport Louisiana for unmatched quality and reliability.
Winch Features
- 30 foot black synthetic line
- Wireless & wired control
- Rocker Switch
- Aluminum Fairlead
- Heavy duty electric contactor to protect your electrical system
- Hook and strap
- Line pull max 1500#
Lighting Package Features

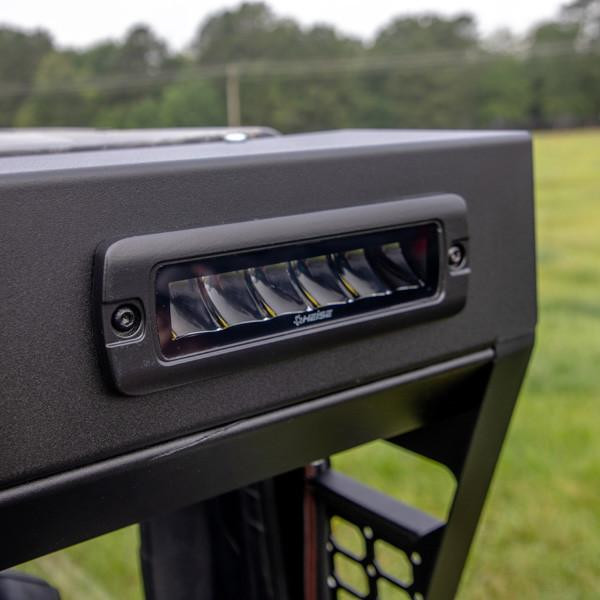

- Flush Mount Lights (2) single row 6” LED lights with complete wiring harness for superior rear illumination in any condition.
- Cab Lights: 2-pin point lights that illuminate the bed and your accessories.

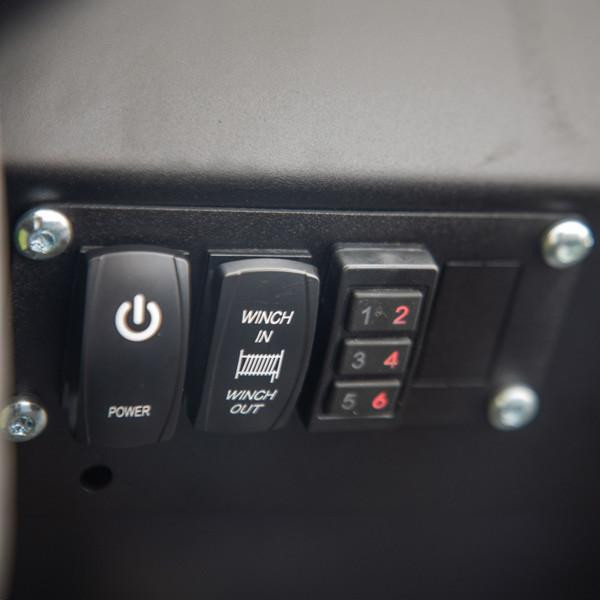

- Control Panel and 6 zone switch: (6) button Carling® style switch allows you to manage all your lighting needs in one location.
- Logo Backlighting: Glowing interior accents that make the red panels come alive.
MOLLE Panel Features
- Enhanced Safety & Protection: Engineered to shield the cabin area from impact, ensuring a secure ride for you and your passengers.

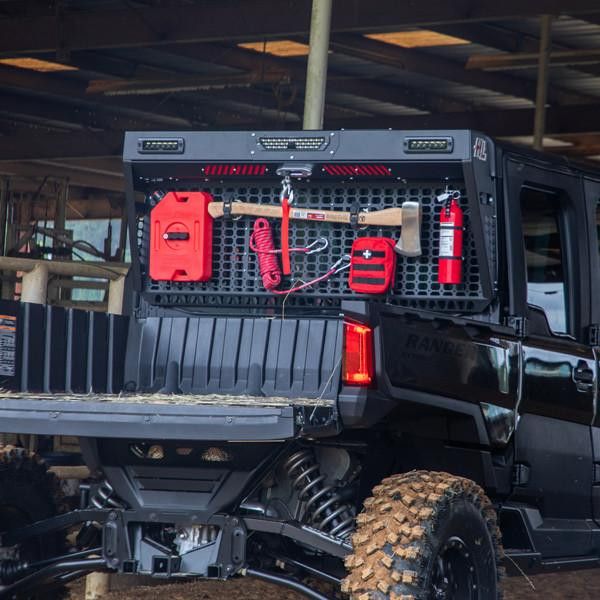

- Versatile Utility: Features integrated MOLLE webbing, providing mounting options for RotoPax, FuelPaX, tools, and other essential gear, making your UTV even more adventure-ready.
- Multiple Tie off Points
Rack Specs
- Material: High-strength American steel
- Winch Capacity: 1,500 LB with synthetic rope
- Lighting Options: Two 6” Single Row, Dome Lights, and internal lights
- Bed Lights
- Mounting Compatibility: RotoPax, FuelPaX, tool mounts, and more
- Integrated Grab Handle
- Assembled Dimensions: 55 5/8” w x 12 1/8”d x 33 7/8"h
- Shipping Dimensions: 62 ¾” w x 10” d x 31 ¼”
Winch Specs
- Rated line pull: 1500lbs(680kgs) single line
- Motor: Permanent magnet,0.5kw/0.7hp
- Gear reduction ratio: 150:1
- Gear train: Differential Planetary
- Cable (Dia x L): Ø4mmx9.2m
- Drum size (Dia x L): Ø1.18”(30mm) x2.8”(71mm)
- Braking action: Automatic In-The-Drum
- Overall dimensions(L X W X H): 11.3''x4''x4.1''(286mm X100mm X105mm)
- Mounting bolt pattern: 80mm, Ø8.5
- Weight: N.W.7kg G.W.8kg
Flush Mount Light Specs
- Size: 7.75"
- 6 LEDs
- Beam Pattern: 15° Spot
- Wattage: 30W
- Raw Lumens: 2880 lm
- Lux @ 10m: 854
- Current Consumption @ 13.8V: 1.8A
- IP Rating: IP67
- Color Temp: 5700K
Controller Specs
- Two control options
- Six button Carling style switch
- App control via Bluetooth
- Each zone Independently Controlled
- Low EMI design
- Input Voltage: 12V
- Power Handling: 700 watts
- Maximum current: 60A
- Control box material: ABS plastic
- Operating temperature: -40°F to 302°F
- Switch size: 1.75" x .83"
- Control box size: 4.3" x 1.08"
Fitment
- 2025 Polaris Ranger XD 1500 Crew NorthStar Premium
- 2025 Polaris Ranger XD 1500 Crew NorthStar Ultimate
- 2025 Polaris Ranger XD 1500 NorthStar Premium
- 2025 Polaris Ranger XD 1500 NorthStar Ultimate
- 2024 Polaris Ranger XD 1500 Crew NorthStar Premium
- 2024 Polaris Ranger XD 1500 Crew NorthStar Ultimate
- 2024 Polaris Ranger XD 1500 Crew Premium
- 2024 Polaris Ranger XD 1500 NorthStar Premium
- 2024 Polaris Ranger XD 1500 NorthStar Ultimate
- 2024 Polaris Ranger XD 1500 Premium
