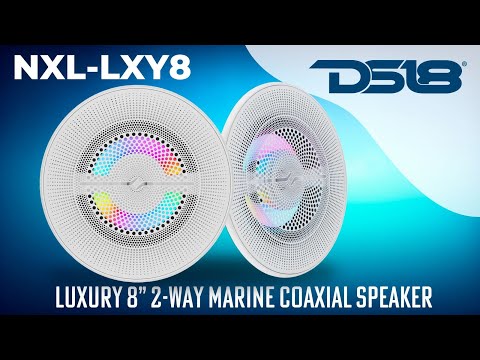

DS18 Audio Luxury 8” 175W RMS 4-Ohm 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille
The NXL-LXY8 gives your system full-range DS18 sound, show-ready RGB lighting, and a clean, screwless flush-mount fit that holds up through anything.
Flush-Mount Magnetic Grille
The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.
Full-Range Takeover
With a high-output neodymium-loaded tweeter suspended in front of the cone, the NXL-LXY8 gives you crisp, clean highs and tight midbass in one drop-in upgrade.
Digital LED Glow
A full digital LED ring sits behind the cone, creating a backlit glow that matches your vibe. Add DS18’s LC-DRM (sold separately) to unlock full color control.
Marine-Rated Strength for All Terrains
IP65-rated with UV-resistant housing and rubber surround, the NXL-LXY8 is built for boats, UTVs, bikes, and open-air builds that see water, salt, heat, and impact.
Features
- 8” 2-Way Marine-Grade Coaxial Speaker
- IP65 Water & UV Resistant Construction
- Floating Bullet Tweeter with Neodymium Magnet
- Digital LED Ring (LC-DRM Compatible)
- Flush-Mount Magnetic Grille for Clean Install
Specs
General
- Nominal Diameter: 8" / 203mm
- Nominal Impedance: 4 ohms
- RMS Power Handling: 175W
- MAX Power Handling: 350W
- Sensitivity (1W/1m): 96 dB
- Frequency Response: 40Hz–20KHz
- Recommended High-Pass Crossover: 50Hz
- Sold in: Pair
Body / Features
- Grill Type: PC + Stainless Steel
- Marine Grade Type: IP65
- RGB LED: Yes, digital LED integrated behind cone
- Digital LED Chip Type: 1815S
- Basket Material: Injection Molded Composite ASA with UV Protection Coating
- Color / Finish: Black, White
Woofer
- Voice Coil Diameter: 1.5" / 38.6mm
- Voice Coil Former Material: Glass Fiber
- Winding Material: CCAW
- Cone Material: PPI
- Surround Material: Rubber
- Basket Material: PC
- Magnet Material: Ferrite + Neodymium
- Magnet Weight: 24 oz + 1.1 oz
Tweeter
- Voice Coil Diameter: 1" / 25.5mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Aluminium
- Magnet Material: Neodymium (N35H)
- Magnet Weight: 0.4 oz
Thiele & Small Parameters
- Equivalent Volume (Vas): 16.92L / 0.59 ft³
- Excursion (One Way): 3mm
- Free Air Resonance (Fs): 58Hz
- Mechanical Factor (Qms): 7.599
- Electrical Factor (Qes): 0.834
- Total Factor (Qts): 0.752
- Moving Mass (Mms): 25.604g
- Compliance (Cms): 0.2875 mm/N
- BL Factor (BL): 6.016
- Voice Coil Inductance (Le): 1.4mH
- Diaphragm Area (Sd): 203.58 cm²
- DC Resistance (Re): 3.2 Ohms
- Efficiency Bandwidth Product (EBP): 69.5
Speaker Measurements
- Overall Diameter: 10.24" / 260mm
- Overall Depth: 4.5" / 114mm
- Front Mount Baffle Cutout: 8.62" / 219mm
- Mounting Depth: 4" / 103mm
- Motor Diameter: 4.33" / 110mm
