Description
Heretic Studio 40" Curved LED Light Bar
The Heretic 40" Curved LED light bar is a beast of a light when it comes to LED light bars. They truly turn darkness into light. These high performance 6-series curved clear LED light bars are designed and manufactured in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 40” curved LED light bar is recommended for forward-facing applications in aftermarket roof racks like PRINSU and UTV roll cages. This light bar is best for visibility on clear night conditions. With bracket included this becomes a 42" LED Light Bar.
FEATURES
- (40) 6-watt CREE LEDs
- Full 240 watts, driven at 100%
- 6061 billet housing
- IP68 rated
- Stainless steel mounts
- Optional amber lens available
- Constructed from a Single Block of Aluminum
- Optimized Light Shape & Lumens
- Heat Management
- Made in the USA

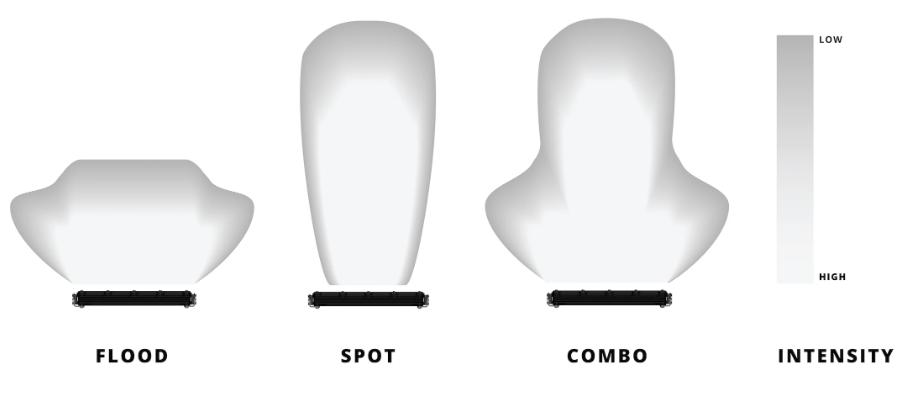

BEAM PATTERN
SPECIFICATIONS
- Shipping Weight: 8lbs
- Type: 40” LED Light Bar
- Housing: CNC Aircraft-Grade Aluminum
- Location: Roof, Bumper, Grille, Rack
- Light Color: White
- Lens Color: Clear
- Wattage: 240W
- Amp Draw at 13.8V: 25.4A
- Voltage: 9V-36V
- IP Rating: IP68
- DIM (Light Only): L 41” x D 1.5” x H 2”
- DIM (Light W/ Bracket): L 42” x D 1.5” x H “2.4
- Lumens: 29040 lm
- Lux At 10m:
- Spot: 8250 lx
- Flood: 1755 lx
- Combo: 5652 lx
- Candela:
- Spot: 825000 cd
- Flood: 1175500 cd
- Combo: 565200 cd
- Beam Distance:
- Spot: 1817 m
- Flood: 838 m
- Combo: 1504 m
- DOT Compliant: No
- Prop 65: No
- SAE/ECE: No
NOTE
Parts Sold Separately
- Wiring Harness
- Aftermarket Mount for Roof Rack Attachment
