MB Quart Polaris General Tuned System (Stage 5) (4 Speaker)
Description

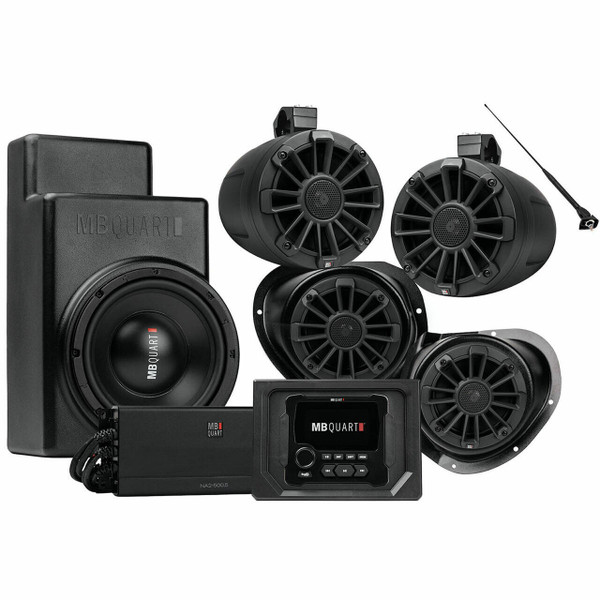

MB Quart Polaris General Tuned System (Stage 5) - 4-Speaker + Subwoofer Tuned Audio System
Designed for 2016 and newer Polaris Generals. Transform your audio levels with more layers of detail from every song and take in clarity and immersion with a Music. Defined. soundscape. Featuring OEM quality fit and finish with easy Plug & Play installation.
Polaris GENERAL 2016-Current UTV Tuned Audio Package: Five Speaker 500 Watt STAGE 5 Audio System includes AM/FM, BT LED Source Unit controlling one amplifier powering 4 coaxial speakers, 10 inch subwoofer in a sealed enclosure. All necessary mounting panels and harnessing are included.
Details And Specifications
|
Weight |
59.8 lbs |
|
Dimensions |
39.7 × 25.8 × 17.3 in |
|
Type |
UTV Kit |
|
Brand |
MB Quart |
|
Series |
Polaris GENERAL Tuned |
|
Category |
Powersports |
|
Condition |
New |
|
Color |
Black |
|
Warranty |
1 Year |
|
IPX Rating |
IPX67 |
|
Compatible Vehicles |
Polaris GENERAL 2016-Current |
Kit Includes
|
Source Unit |
AM/FM, Bluetooth source unit (GMR-LED). |
|
Source Unit Mounting |
2016-Current Polaris GENERAL mounting panel. |
|
Front Speakers |
The front 6.5 inch coaxial speakers are the NP1-116 two way speakers. |
|
Front Speakers Mounting |
High impact ABS GENERAL specific left & right speaker panels are an ultra-compact design that takes up minimal space. |
|
Rear Speakers |

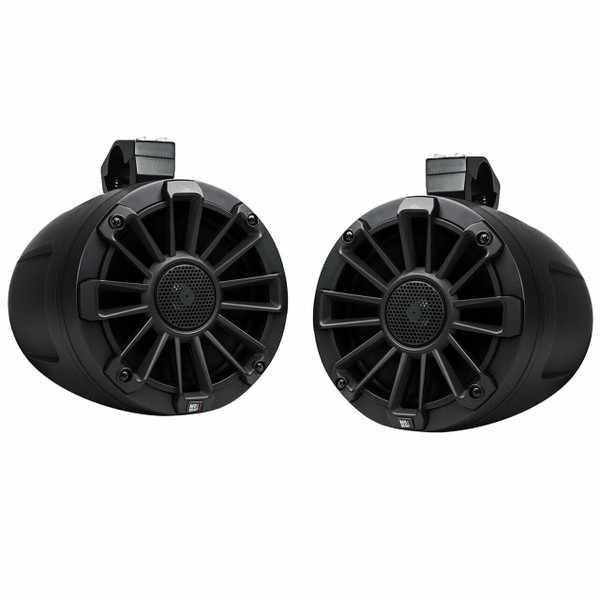

The rear 6.5 inch pod speakers are the NPT1-116BBG two way speakers that feature profile cage mounting hardware. |
|
Rear Speakers Mounting |
The rear speaker pods mount to the OEM cage with the included profile cage mounting hardware. |
|
Subwoofer |
Dual voice coil 10 inch subwoofer in a high impact HDPE composite enclosure. |
|
Subwoofer Mounting |
The subwoofer enclosure fits perfectly in the front dash |
|
Full Range Amplifier |

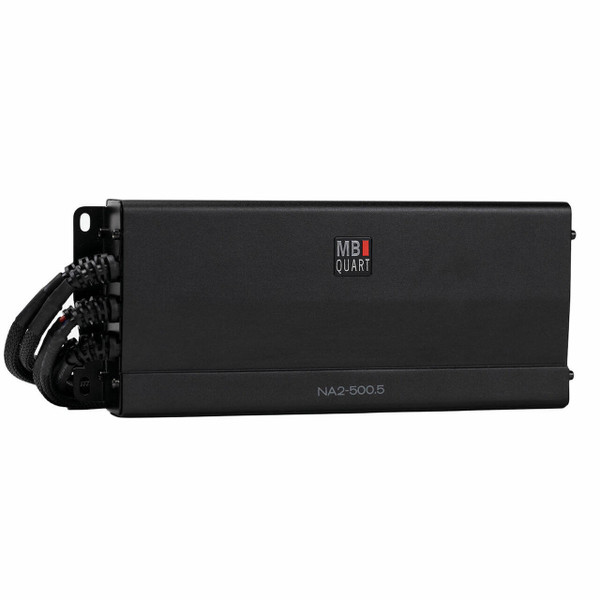

NA2-500.5: High Efficiency, Full Range 5 Channel Class D 500 Watt Amplifier. |
|
Harnessing |
Full system harness capable of accommodating source unit, 1 amplifier, which power 4 speakers, and the subwoofer. |
|
Accessories |
MBQG-ACC-1: GENERAL Radio and Amplifier Harness is included with the system. |
Features and Benefits
|
Compatible Vehicle Fitment |
Polaris GENERAL 2016-Current |
|
Marine Grade Protection / IPX Rating |
MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the Polaris GENERAL. It is essential that every component installed in a GENERAL be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The source unit, speakers, and subwoofer are IPX67 rated. The amplifier is IPX5 rated. |
|
Source Unit Features |
QUICK PAIR immediately connects to the last device that was connected and you'll have full Apple Control with Bluetooth capabilities. This unit also displays album artwork, if present, in your file. High voltage output guarantees maximum volume when running external amplifiers. |
|
Speaker Features |
These speakers are meticulously engineered to fit in the Polaris GENERAL. They include a 1" Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly makes it as indestructible as the GENERAL. |
|
Amplifier Features |
High Efficiency Class D Amplifier Compact Powersports Subwoofer Amplifier. |
|
Subwoofer Features |
10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, GENERAL Dash Mount Subwoofer Enclosure, powered by the included 500 Watt High Effeciency Full Range 5 Chennel Class D amplifier. |
|
Mount / Harness |
Plug and Play Harness. Waterproof Connectors with pre-measured wires. No guesswork, no installation mistakes. |
|
Time and Tools |
Standard hand tools are required. See the manual for time on each of the different components. |
