Rockford Fosgate

Rockford Fosgate Can-Am X3 MAX 1000 Watts Rear Subwoofer Solution (Gen-3)

In Stock
$2,077.77
Part #:
UTVS0048468
Manufacturer Part #:
X317MAX-RSS
Primary Supplier:
Thumper Fab - Rockford Fosgate
Secondary Supplier:
Tucker Rocky
Adding to cart… The item has been added

Rockford Fosgate Can-Am X3 MAX 1000 Watts Rear Subwoofer Solution (Gen-3) (X317MAX-RSS)

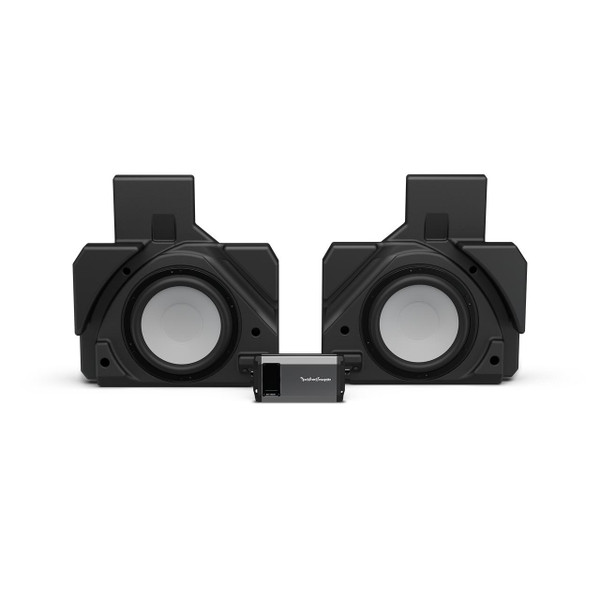

Purpose Built exclusively for select Can-Am® X3 MAX models, this dual rear subwoofer kit provides next level bass performance, an Element Ready™ design, and simple installation. The kit is designed as an upgrade for select aftermarket Rockford Fosgate Can-Am Stage-3/4/5/6 systems. It features two Element Ready™ 10" loaded subwoofer enclosures and 1,000 watt, next-generation IPX6 Element Ready™ amplifier.  Includes all necessary wiring harnesses and hardware. Fits 4-seat models only.  Does not fit 2-seat models.  See COMPATIBILITY chart to verify system requirements and fitment before purchasing.

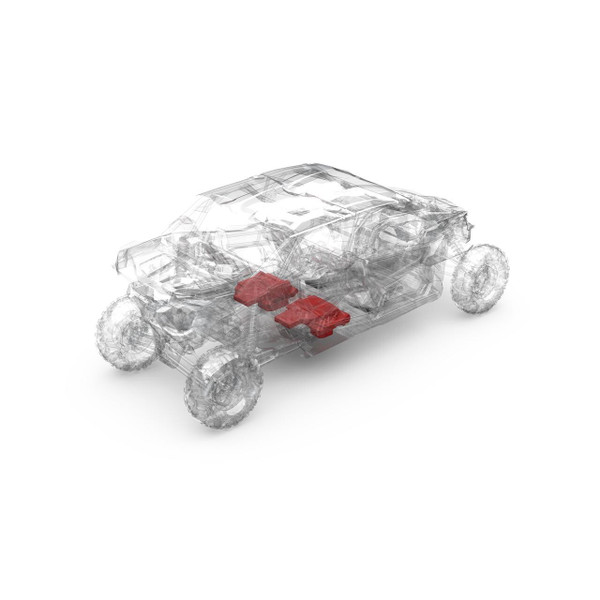

Plug-n-play system easily integrates into existing Rockford Fosgate aftermarket audio systems. Audio system is 100% Element Ready™ solution and provides ability to take your off-road vehicle into any environment. The subwoofer enclosures mount underneath the rear driver and passenger seats, and the amplifier mounts inside the rear center tunnel.  Amplifier also employs the Rockford Fosgate PRESET switch for easy set-up, allowing maximum performance without any tuning. System features a plug-and-play design and does not require any cutting or drilling of vehicle.  A step-by-step install video is available for DIY installations.

Features

  • Bass upgrade for select Can-Am stage kits
  • Uses factory mounting locations for easy install

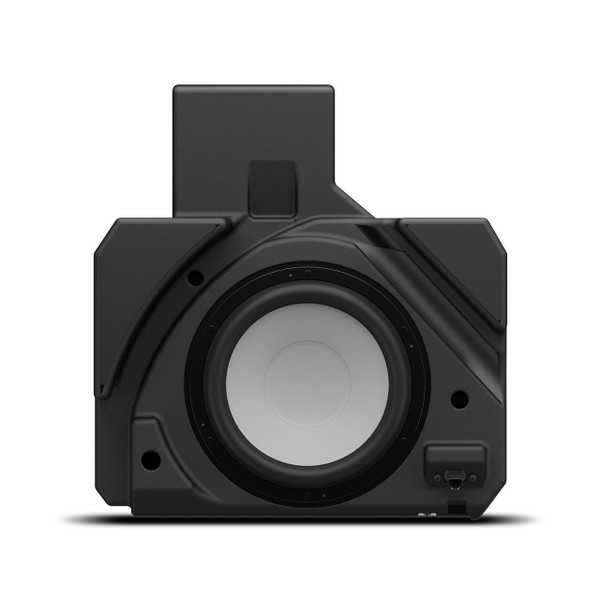

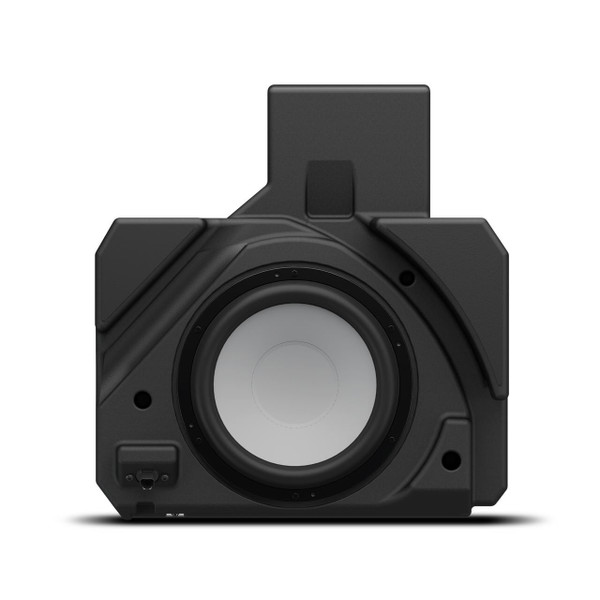

  • M2 10” IPX6 Element Ready™ loaded subwoofers in enclosures under rear seats
  • Down firing configuration for improved performance

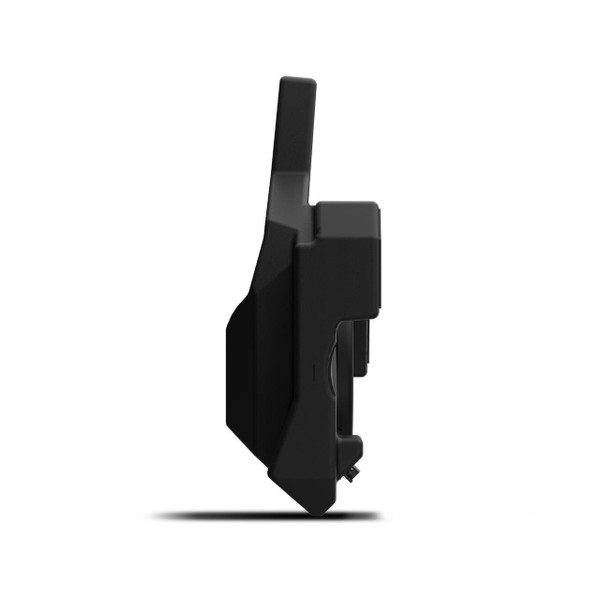

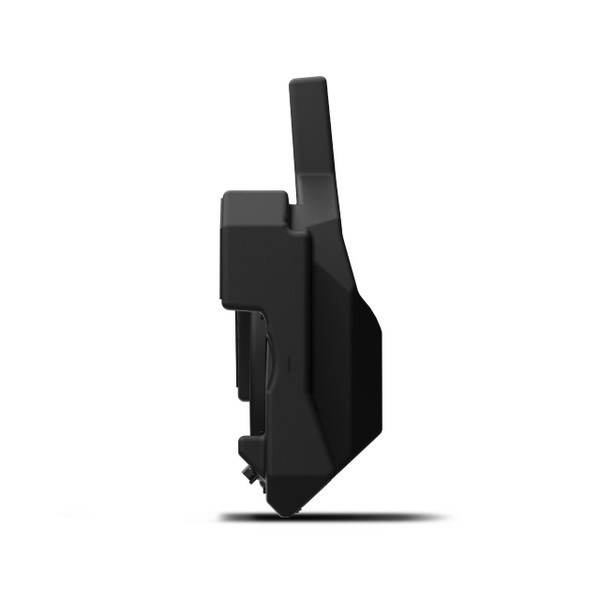

  • Custom fit left and right sealed subwoofer enclosures
  • Roto-mold design for lightweight and durable seamless construction
  • Enclosure textured to match factory finish

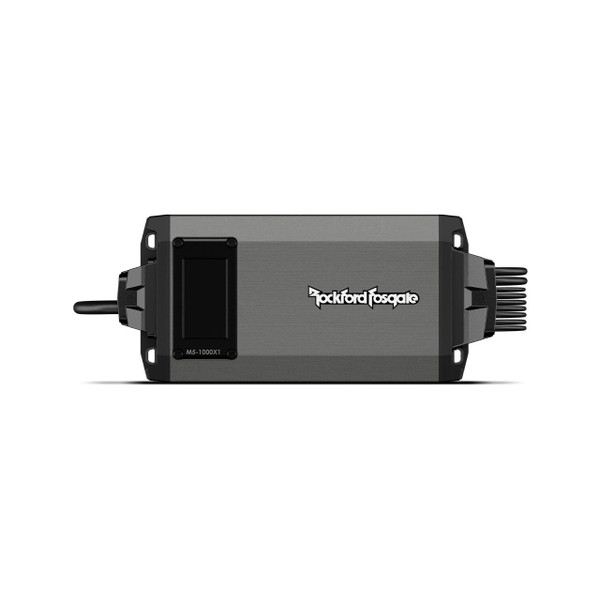

  • M5-1000X1: 1,000-watt mono IPX6 Element Ready™ amplifier
  • Vehicle specific wiring harness and mounting plate for amplifier
  • Amp PRESET engages Rockford Fosgate tune, eliminating need for manual setup

Specifications

  • CEA-2031 Compliant - CEA-2031 Guidelines
  • Woofer Quantity - 2
  • Woofer Size - 10"
  • Woofer Series - M2D2-10IB
  • Nominal Impedance (ea) - 2Ω (4Ω each enclosure wired in parallel to create a 2Ω amp load)
  • Frequency Response - 20 Hz – 750 Hz
  • Sensitivity - 90.3 dB
  • Power Handling (Watts RMS) - 500 Watts RMS 1,000 Watts Peak
  • Enclosure Type - Infrasonic: 30 Hz @ 12dB/Octave
  • Enclosure Type - Sealed
  • Enclosure Material - Roto-molded HDPE
  • Speaker Connector - 2-pin Deutsch™/Amphenol™
  • Dimensions
    • Box (H x W x D)
    • Wedge (H x W x D1 x D2)
      • 19.97” x 18.82” x 8.06” (each enclosure)
      • (608 cm x 573 cm x 245 cm)


In The Box

  • (2) Pre-loaded subwoofer enclosures
  • (4) Enclosure mounting brackets
  • (4) Spacer washers
  • (12) Bracket and enclosure mounting screws
  • (4) Amp mounting screws
  • (1) Amp plate mounting push clip
  • (1) Amp Bracket
  • (6) Zip ties
  • (1) Enclosure speaker harness
  • (1) Amp power and input signal harness

Fitment

MODEL201720182019202020212022
Maverick X3 MAX Turbo
Maverick X3 MAX Turbo R
Maverick X3 MAX DS Turbo
Maverick X3 MAX DS Turbo R
Maverick X3 MAX X DS Turbo RR
Maverick X3 MAX RS Turbo R
Maverick X3 MAX X RS Turbo RR
Maverick X3 MAX X MR Turbo RR

NOTE

3 to 4 Weeks Leadtime
