Vision X XPL Lo Pro LED Light Bar
The XPL Halo Series of LED Light Bars builds upon the XPR Series by combining the distance power of Iris Reflector Technology with an ultra-slim housing design. Utilizing a powerful 5W CREE LED, the XPL series produces a powerful long-distance spot beam but with a much smaller and low-profile housing when compared to our other light bar series.
Driving through harsh weather conditions? No problem. The new Selective Yellow lens option allows you to cut through dust, rain, snow, and fog to maintain maximum visibility.
This light bar also features our infamous back-lit halo function that is run independently on its own separate circuit. Simply tap the halo wire into any accessory 12v power source to have it on for extra style or use as an accessory parking light.

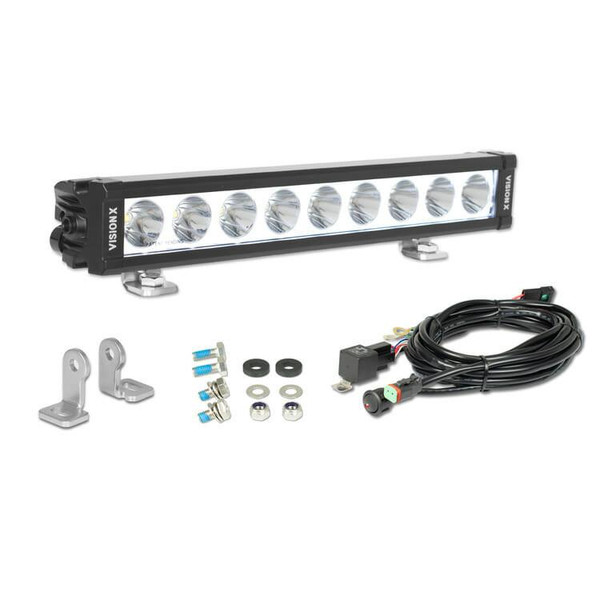

Each XPL series light bar comes with our dual mounting options included. The standard end cap wing mounts allow for the bar to be mounted at max width while our patented feet mounts install underneath the light bar with full horizontal adjustability so you can easily slide them around to match pre-existing mounting holes.
Features:
- Ultra Slim Housing Design
- Daytime Running Backlit Halo
- Iris Reflector Technology for Superior Light Distance
- Multiple Mounting Options
- Plug and Play Harness with Relays and Rocker Switch Included
Specifications:
- Item #: XPL-H3EMH\XPL-H3SYEMH
- Part #: 2506916\9946429
- Beam: Spot
- Length: 5.63
- # of LEDs: 3
- Raw lumens: 1,605 lm
- Effective lumens: 1,124 lm
- Weight (lbs): 1.17
- Input volts: 9-32V
- Amp draw: 1.25A
- Item #: XPL-H6EMH\XPL-H6SYEMH
- Part #: 2510916\9946436
- Beam: Spot
- Length: 9.41
- # of LEDs: 6
- Raw lumens: 3,210 lm
- Effective lumens: 2,247 lm
- Weight (lbs): 1.63
- Input volts: 9-32V
- Amp draw: 2.5A
- Item #: XPL-H9EMH\XPL-H9SYEMH
- Part #: 2513916\9946443
- Beam: Spot
- Length: 13.19
- # of LEDs: 9
- Raw lumens: 4,815 lm
- Effective lumens: 3,371 lm
- Weight (lbs): 2.09
- Input volts: 9-32V
- Amp draw: 3.75A
- Item #: XPL-H15EMH\XPL-H15SYEMH
- Part #: 2520916\9946283
- Beam: Spot
- Length: 20.75
- # of LEDs: 15
- Raw lumens: 8,025 lm
- Effective lumens: 5,618 lm
- Weight (lbs): 3.09
- Input volts: 9-32V
- Amp draw: 6.25A
- Item #: XPL-H24EMH\XPL-H24SYEMH
- Part #: 2530916\9946290
- Beam: Spot
- Length: 32.09
- # of LEDs: 24
- Raw lumens: 12,840 lm
- Effective lumens: 8,988 lm
- Weight (lbs): 4.63
- Input volts: 9-32V
- Amp draw: 10A
- Item #: XPL-H30EMH\XPL-H30SYEMH
- Part #: 2540916\9946405
- Beam: Spot
- Length: 39.65
- # of LEDs: 30
- Raw lumens: 16,050 lm
- Effective lumens: 11,235 lm
- Weight (lbs): 5.73
- Input volts: 9-32V
- Amp draw: 12.5A
- Item #: XPL-H39EMH\XPL-H39SYEMH
- Part #: 2550916\9946412
- Beam: Spot
- Length: 50.98
- # of LEDs: 39
- Raw lumens: 19,260 lm
- Effective lumens: 13,482 lm
- Weight (lbs): 6.83
- Input volts: 9-32V
- Amp draw: 15A
Vision X (About)
Vision X Lighting is located in Auburn, Washington in the Greater Seattle Area. Established in 1997, Vision X Lighting’s products have consistently astounded customers with their lighting’s ability to perform in harsh environments and unbeatable light output. The engineering, product development, and marketing are conducted from the Vision X USA office, while Vision X Asia is home to the manufacturing, testing, and inventory logistics departments of Vision X Global Lighting. Today, Vision X Lighting has strong partnerships spanning across the globe where they continue to develop the most advanced lighting products in the world.
