The Volcon Epowersports Stag UTV: Power, Performance And Electric Efficiency

Experience the Future of UTVs with the Volcon Epowersports Stag Electric UTV

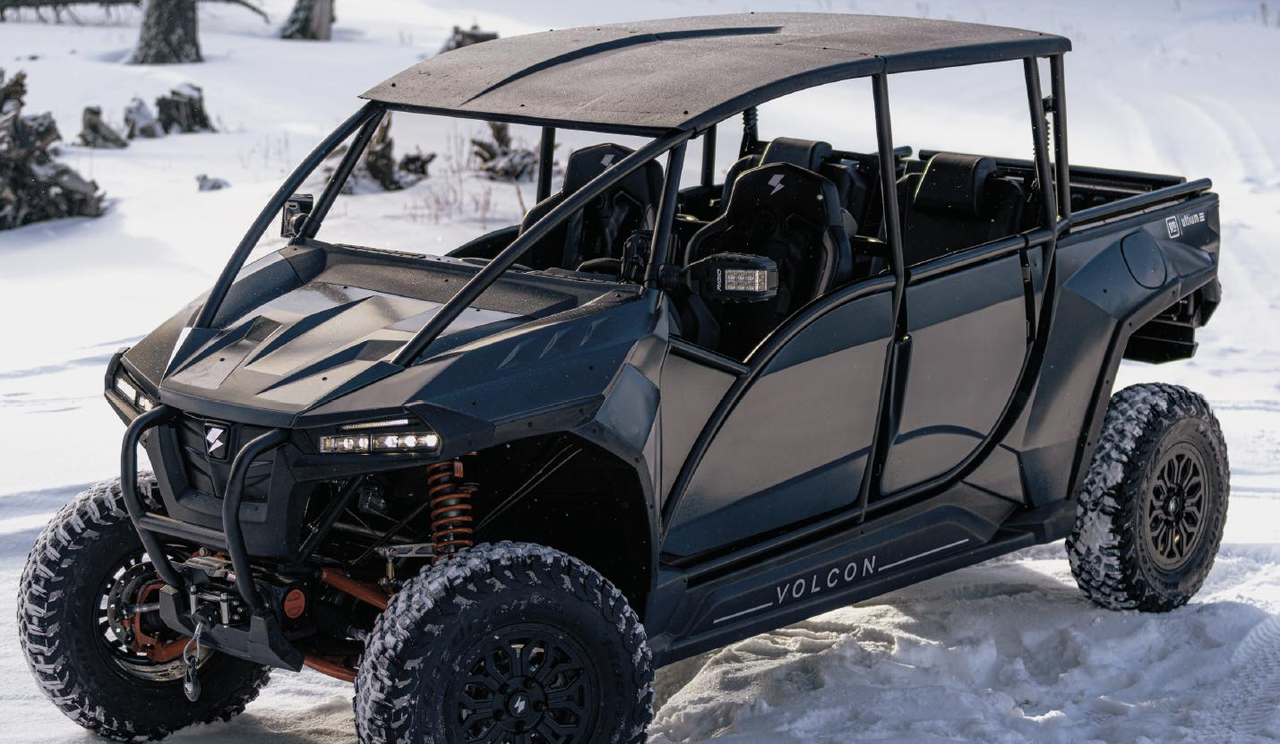

The utility terrain vehicle (UTV) market has a powerful new player: the Volcon Stag. As the flagship product from Volcon, an innovator in off-road electric vehicles, the Stag offers superior performance capabilities, advanced features, and sustainable design. With an impressive starting MSRP of $39,999, the Volcon Stag is set to redefine the future of electric UTVs.

Outstanding Performance

The Volcon Stag doesn't compromise on power, boasting impressive speeds, range, and torque. Capable of reaching speeds of up to 80 mph, the Stag offers over 100 miles of range under typical driving conditions. The vehicle's horsepower ranges from 125 hp to over 140 hp with an optional power boost, and offers an impressive torque of 265 lb-ft.

Sturdy Build and Design

The Stag boasts a robust construction, including a comprehensive set of features that contribute to its impressive performance. It features 30 x 10-15 BF Goodrich 6 Ply, Tubeless, KM3 tires on both front and rear, fitted on 15-inch die-cast aluminum wheels. The suspension system is engineered for superior stability, with 14-inch travel, high clearance dual A-arms with a 3-piece anti-roll bar, and front and rear stabilizer bars. ELKA® Performance External Reservoir shocks on both front and rear ensure a smooth ride, and its electric parking brake and 4 wheel disc brakes provide effective stopping power.

Superior Handling

The Volcon Stag offers a dynamic driving experience with a lock gas strut assisted tilt column steering, multiple adjustment options, and a range of selectable driving modes. Drivers can choose between Sport, Explore, and Stroll modes to customize their ride. The drivetrain supports on-demand 4WD/2WD, and the vehicle also features adjustable regenerative braking.

Impressive Dimensions and Load Capacity

The Stag is designed to comfortably accommodate up to four passengers. Its overall width is 64 inches, track width is 54 inches, and its total length reaches 155 inches with a wheelbase of 121 inches. The UTV boasts a ground clearance of 14 inches, contributing to its off-road capabilities. With a total payload capacity of 1,200 lbs (passengers and cargo combined), a cargo box capacity of 650 lbs, and a tow rating exceeding 2,000 lbs, the Stag is built for heavy-duty usage.

Advanced User Features

The Stag features a 6-button rotary shifter dial and a 7-inch driver dash display that shows speed, battery charge power, AWD status, diff-lock, revs, odometer, and drive until empty (DTE) information. An optional Garmin center display is available for added convenience. The vehicle also offers several connectivity features, including accessory rail USBs, front and rear occupant USBs, and SAE plugs on the front and rear bumpers. For a seamless start, the Stag provides a keyless FOB and push-button start.

Powertrain and Battery

The Stag's electric motor offers 100+ kW of power, and it can be charged in less than 6 hours using a Level 2 charger. Its 42 kWh battery provides the necessary power to achieve its impressive range and speed. The vehicle's front and rear differentials are equipped with a dual-clutch and a selectable locking differential for superior control.

The Volcon Stag, with its blend of performance, robust design, and advanced features, is a leap forward in the UTV market. It proves that electric power need not compromise on performance, making it a game-changer in the realm of off-road vehicles. UTV Source is eagerly anticipating the official release of the Volcon Stag and is excited to attend the official media event. This occasion will provide an invaluable opportunity to gain in-depth knowledge of the Stag and its capabilities. More importantly, we're looking forward to experiencing first-hand its performance out on the trail. Stay tuned as we embark on this thrilling journey with Volcon and explore the cutting-edge advancements they have brought to the UTV landscape with the introduction of the Stag.

PERFORMANCE

TOP SPEED (mph) ..................................... 80 mph

RANGE........................................................ 100 + miles*

HORSEPOWER .......................................... 125 hp to over 140 hp**

TORQUE..................................................... 265 lb-ft

*Under typical customer driving usage and conditions, weather, speed, cargo loads, rates of

acceleration, vehicle maintenance, and vehicle usage.

**With optional power boost

TOW AND LOAD

PAYLOAD TOTAL ....................................... 1200 lbs (Cargo + Passengers)

CARGO BOX CAPACITY ........................... 650 lbs

TOW RATING.............................................. 2000 + lbs

TONGUE WEIGHT...................................... 350 lbs

DIMENSIONS AND WEIGHT

OVERALL WIDTH....................................... 64 in.

TRACK WIDTH........................................... 54 in.

HEIGHT....................................................... 78 in.

GROUND CLEARANCE............................. 14 in.

TOTAL LENGTH ......................................... 155 in.

WHEELBASE.............................................. 121 in.

PASSENGERS ............................................ 4

SUSPENSION, STEERING AND BRAKES

TIRES (FRONT AND REAR):

30 x 10-15 BF Goodrich 6 Ply, Tubeless, KM3

WHEELS:

15 in. Die Cast Aluminum

FRONT AND REAR:

14 in. Travel, High Clearance Dual A-Arms with 3 piece anti-roll bar,

Front and Rear Stabilizer Bars

SHOCKS (FRONT AND REAR):

ELKA® Performance External Reservoir

TRAVEL:

14 in.

STEERING:

Lock Gas Strut Assisted Tilt Column, Multiple Adjustment

BRAKES:

4 Wheel Disc, Dual Bore Front Calipers, Electric Parking Brake

POWERTRAIN AND BATTERY

FRONT DIFFERENTIAL:

Dual Clutch - Selectable Locking Differential

REAR DIFFERENTIAL:

Dual Clutch - Selectable Locking Differential

MOTOR:

100+ kW

TIME TO CHARGE:

Less than 6 hours*

BATTERY:

42 kWH

CONNECTION:

CCS Type 1

ON-BOARD CHARGER:

Level 1 and Level 2

DRIVER TUNABLE MODES:

Regen Braking, Arti cial Creep

SELECTABLE DRIVE MODES:

Sport, Explore, Stroll

DRIVETRAIN:

On Demand 4WD/2WD

MOTOR BRAKING:

Regen Braking (Adjustable with driving modes)

SPECIAL PROVISIONS:

Option for additional HP (140 MAX)

*With a level 2 charger (Not included)

USER FEATURES

CONTROLS AND INTERFACES:

6 Button Rotary Shifter Dial

DRIVER DASH:

7 in Display with: Speed, Battery, Charge Power, Regen, AWD, Diff-Lock,

Revs, Odometer, DTE - Drive Until Empty

CENTER DISPLAY:

Optional Garmin center display

HMI:

Standard (Tablet, Phone, Screen)

CONNECTIVITY:

Accessory Rail USBs (2x), Front occupant USB (1x), Rear occupant USB (1x),

SAE plugs front and rear bumpers (1 each)

KEY/START:

Keyless FOB, Push Button to Start

D Pad Control:

D Pad controller on dash for driver display control

For further information check out - www.VOLCON.com/STAG

Volcon Epowersports is an innovative company revolutionizing the outdoor powersports industry with its range of electric off-road vehicles. Located in the United States, Volcon specializes in the design, manufacture, and sales of high-quality, electric all-terrain vehicles (ATVs) and utility terrain vehicles (UTVs). Their flagship product, the Volcon Stag, exemplifies their commitment to providing environmentally friendly transportation solutions without compromising on power or performance. Combining cutting-edge technology, sustainable practices, and robust designs, Volcon Epowersports is paving the way for the future of eco-conscious outdoor exploration and adventure.
